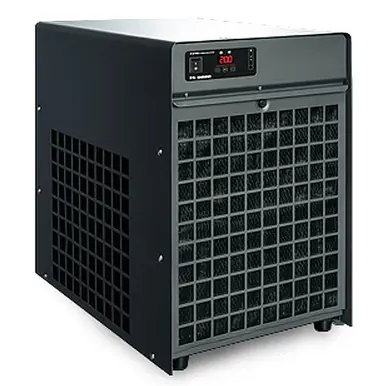

TANK TK-3000 Aquarium Chiller
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption and low noise levels.
BUILT-IN HEATER
The TANK® TK-2000 comes standard with a heater built into the unit (previously, had to be purchased and installed separately). The built-in heater provides better control over water temperatures and can be operated through the digital thermostat.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.
TANK TK-3000 Aquarium Chiller
Temperature control range: 43F – 100F.
Internationally-recognized high-end compressors and titanium coaxial heat exchangers provide high performance, low energy consumption and low noise levels.
BUILT-IN HEATER
The TANK® TK-2000 comes standard with a heater built into the unit (previously, had to be purchased and installed separately). The built-in heater provides better control over water temperatures and can be operated through the digital thermostat.
DIGITAL THERMOSTAT
Intuitive controller with accurate temperature detection from 32 to 95°F. Closed loop temperature control system with extremely tight differential of 1°F. Displays in °F or °C, and audible alarms for certain situations.
EFFICIENT DESIGN
Solid and durable structure designed to guarantee near perfect protection against corrosion. Rotatable in-set water connections, rotatable exhaust conveyor, and smaller form-factor helps facilitate placement of chiller in confined spaces.
Cooling Performance
Ability of the TANK TK-3000 to pull down water temperatures in an 86°F room:
| AQUARIUM SIZE | TEMP. ATTAINABLE | HEATING LOAD | NET PULL-DOWN | C.O.P.* |
|---|---|---|---|---|
| 790 gallons | 77°F | 1.89 watts/gal. | 9°F cooler | 2.8 |
| 210 gallons | 47°F | 0.38 watts/gal. | 39°F cooler | 1.4 |
| * Coefficient of Performance (COP)– a numerical value that represents cooling performance from a baseline room temperature of 86°F and a typical heat source (aka. Heating Load |
Technical Specifications
| Recommended Aquarium Size | up to 750 gallons | |
| Horsepower | 1/2 HP | |
| Maximum Pressure | 14.5 psi | |
| Minimum Flow Rate | 793 gallons per hour | |
| Maximum Flow Rate | 1,057 gallons per hour | |
| In/Out Water Connection | 1″ tube diameter | |
| Exchanger | titanium | |
| Supply | 120V-60Hz | |
| Power Consumption | 750 Watts | |
| Gas/Refrigerant | R410A | |
| Weight | 92.6 lbs. (42.0 kg) | |
| Dimensions | 23.62″ x 15.16″ x 25.59″ |
Product code: 7120
Item No. CH-TK3000
