Rated for Aquariums up to 1200 Gallons

Footprint: 24″ x 20.5″ | Body Diameter: 16″ | Height: 38″
Pump: Reef Octopus Bubble Blaster 10000s
– Requires a 1200-2200GPH Feed Pump to Operate

High-Performance Protein skimmer

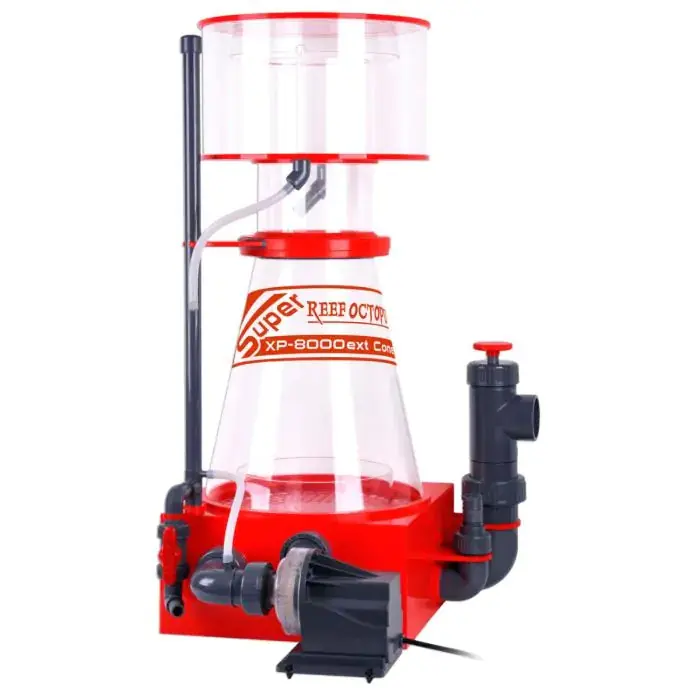

The Super Reef Octopus XP8000Ext is a Recirculating External protein skimmer that has a full conical body for enhanced foam production* and power-packed performance provided by the Bubble Blaster 10000s pinwheel pump by Reef Octopus.

Bioload Handling

The bioload of an aquarium refers to its ability to process waste in proportion to tank volume. Protein skimmers work best when properly matched with the bioload of the system.

(EXCLUDING SUMP)

• Heavy
• Medium
• Light

• 800 gallons
• 1000 gallons
• 1200 gallons

Super Reef Octopus XP8000Ext model has the following features:

• Full Cone BodywithBubble Diffusing Chamber naturally reduces and stabilizes the foam production; This means less turbulence in the neck area and more contact time for organics to rise and collect*
• LG Air Silencer for quiet operation and airline mount
• Large Collection Cup with flow directional guide lid, waste drain, and unit venting
• Precision ControlOutput Valve for Easy Tuning
• Solid Acrylic Construction- Made Tough
• The Bubble Blaster HY-10000 pinwheel pump offers super efficiency and the very best in performance. The Bubble Blaster is designed to enhance filtration by employing the innovative pinwheel impeller which delivers more bubbles in greater volume with low energy consumption and heat emission.

*The XP full cone body puts less back pressure on the pump gaining performance enhancements (air/water draw) and the volcano shape offers natural transition of organics up and out of the water column.

Technical Specs

Body Size: 16in
Footprint: 24in x 20.5in
Neck Size: 6in
Total Height: 38in
Output Size: 62mm/ 2in PVC
Output Height: 11in
Feed Inlet Size: 1in
Max Feed Rate: 2,200 GPH

Note:Suggest Feed Rate is 1.5-2 times the system volume but not exceeding the max rate of 2,200GPH

Pump Information

Bubble Blaster HY-10000s Pinwheel Recirculation Pump
Voltage: 120v/60Hz
Wattage: 125w (95w running)
Air draw: 4000 L/H (140 SCFH)
GPH: 600 – Efficiency: 95%
*Air and water results will vary depending on aquarium setup

Warranty

• 2 Year on Pump
• 2 Year Rotor
• 1 Year on Skimmer Body

Reef Octopus can not be responsible for consequential damages arising from the installation or use of this product. Reef Octopus warrants the pump to be free from defects in material and workmanship under normal use and conditions for the warranty period from the date of purchase.

CoralVue liability under this warranty shall be limited to repairing or replacing at CoralVue’s discretion, without charge. CoralVue will not be liable for any cost of removal, installation, transportation, or any other charges which may arise in a warranty claim.

*Reef Octopus reserves the right to change/modify this product without notice.

WARRANTY

CoralVue, Inc. and Reef Octopus hereby guarantee this product to be free from defects in material and workmanship for a period of:

• Five (5) year warranty on pump body/housing
• Three (3) year warranty on Reef Octopus branded controller
• One (1) year warranty on Power Supply, Impeller (and components), Rotor, Rear Bushing, and Gaskets

Warranty is activated on the date of purchase.

This Standard Limited Warranty applies and is limited as follows:

• To the product only as long as it remains in the possession of the original purchaser.
• To the product that has not been subject to accident, misuse or abuse.
• To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
• That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
• That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
• Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
