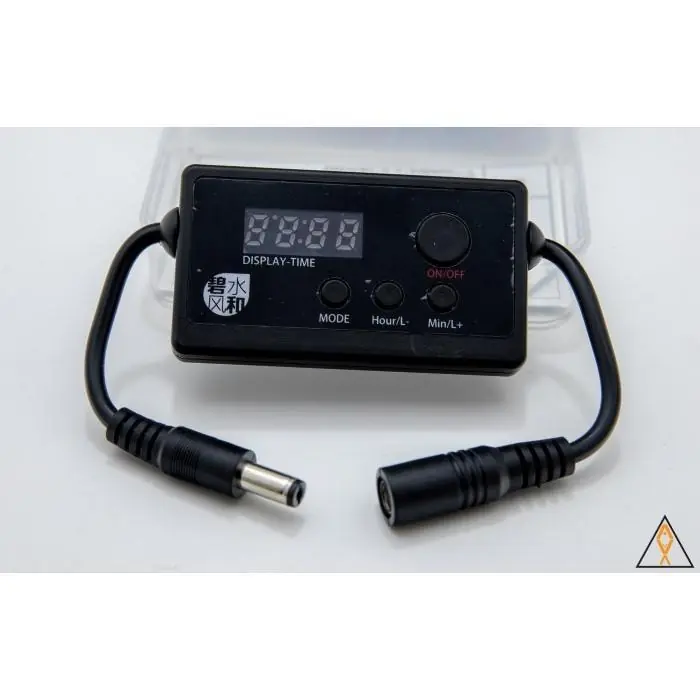

Programmable Smart LED Controller – Generic

Want a budget LED with sun rise and sun set function? Now you can buy Hinterfeld’s smart controller and convert your normal LED (must use with constant voltage transformer) into a programmable LED light. Suitable for use with LED’s under 36 V and 100 W.
Features
8 programs, set 8 different light intensity at 8 different time during the day.

• Real time display.
• 0-100% adjustment on each setting.
• Built-in clock – you can set intensity change at your preferred time.
• Power disconnected memory – your setting will remain in the device even if the power is disconnected, and it will resume the setting once you connect the power again.
• Easy to use, simply take the controller out from box, and connect it between the LED light and the AC/DC adapter.
• Changes intensity linearly over time and imitates real sunrise and sunset.
• Connector: DC5.5 (you need to make sure your fitting is using this connector).

Area of Use

• Planted Tanks and Fish Tanks – Simulate sunrise and sunset for the day.
• Arowana (Dragon Fish) Tanks – Can leave 1-3% moon light through the night, less stress on fish and less chance of self injury.
• Cooling fan – Can be programmed according to time of day and change in temperature
• DC water pump – Can control a DC circulating pump to simulate different water currents

Instructions

ON/OFF

• Short press to turn on and off
• Long press to go into clock setting, use +/- to adjust hour and mins, then press Menu to exit

MIN/L+

• Increase intensity

HOUR/L-

• Decrease intensity

MODE

• To enter programming mode, press and hold for 3 seconds
• The display will flash between NO-1 and the current time, press + and – to adjust
• Press mode again for brightness setting, press + and – to adjust
• Press mode again and the display will flash between NO-2 and the current time, press + and – to adjust
• Press mode again for brightness setting, press + and – to adjust
• Press mode again to enter the next timed program setting etc. up to 8 programs
• Caution: If display shows “–:–” it mean the setting is not recognized

Display

• L00*/Time rotate – it is working at that particular setting
• AUTO/Time rotate – it is running the programs automatically (the device default is AUTO, it goes into AUTO mode once turned on)
