PARwise USB Light Meter – ITC Reefculture

Achieve Accurate Light Settings with the PARwise Aquarium Light Meter

Smart Submersible Quantum (PAR) Sensor

PARwise helps answer the question of how to set your aquarium lights, whether it involves brightness, color (spectrum), or photoperiod. PARwise empowers reef keepers to make informed decisions about their lighting settings. Achieving optimal growth rates requires three key factors: the right wavelengths, the correct light intensity, and precise timing. Light varies with depth and water clarity, as do the needs of plants and animals. Unfortunately, the human eye isn’t very good at judging light levels and colors! PARwise offers a user-friendly light meter that provides a clear understanding of your lighting and how to fine-tune it for optimal results, proudly designed and manufactured in the United Kingdom.

What is PARwise?

PARwise is a unique light meter with the ability to measure the spectrum. It can be used underwater and has a special mode for use in the air. Two light meters in one! It provides you with all the relevant lighting measurements necessary to make informed decisions about your light settings and photoperiod.

What PARwise Measures:

• PARwise measures ‘PAR’ (PPFD – Photosynthetic Photon Flux Density µMol/m2/S)
• Kelvin (Color temperature)
• LUX
• Spectrum
• DLI (Daily Light Integral)
• Peak Wavelength
• Hue Color

How It Works.

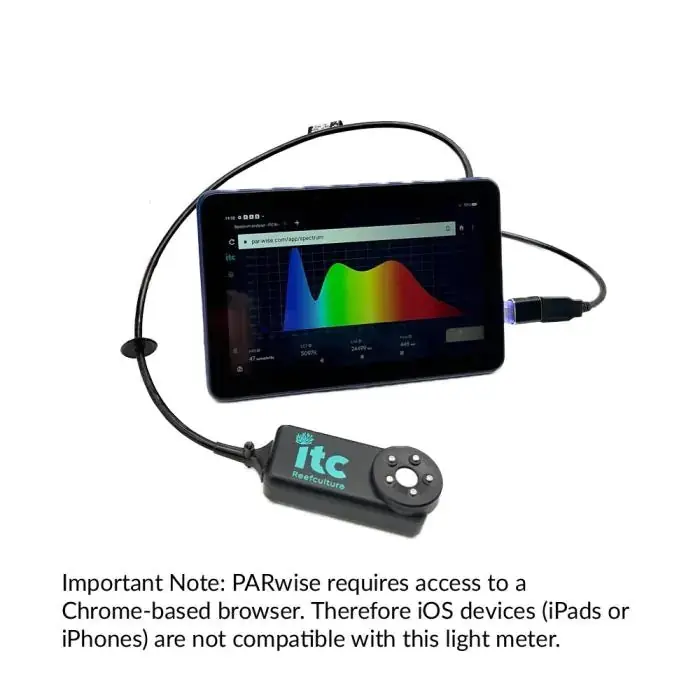

PARwise uses a proprietary, in-house made, and designed optical engine nestled underneath a user-replaceable cosine corrector to evenly ‘read’ the spectral content and quantity of light that hits it. PARwise sends the data over USB to the connected device to display the results. The web-based app automatically downloads to the device (Windows, macOS, Android) the first time it is used. Included in the box is a free USB-C adaptor to fit into Android smartphones, tablets, or computers (if needed).

Important Note: PARwise requires an Android device or a computer to operate. It is currently not compatible with iOS or iPadOS because Apple devices do not support USB OTG.

How To Use:

Follow the user instructions to get thePARwisedevice up and running – then place the sensor next to a photosynthetic organism such as a coral or plant, and then take a reading. Use the on-screen ‘pause’ button to capture the reading in that position and reference the spectrum against a known spectral response curve or another desired light setting.

Technical Specifications:

PAR Range	0-6000 µMol/m2/s
Kelvin	1000-10,000 Kelvin
LUX	2-300000
Spectrum	380-800nm
Optical Measurement Type	Point Light Source
Accepted Light Sources	Natural, LED, Fluorescent, Incandescent, Gas Vapour, HID
Measurement repeatability	< 0.5%
Calibration Uncertainty	+- 5%
Directional cosine corrector	Replaceable
Temperature Response	Auto compensating
Ingress Protection Rating (IPR)	IP68
Dimensions	85x40x20mm
Device Weight	130g

WARRANTY

CoralVue, Inc. and ITC Reefculture hereby guarantee this product to be free from defects in material and workmanship for a period of:

• 90 Days

Warranty is activated on the date of purchase.

This Standard Limited Warranty applies and is limited as follows:

• To the product only as long as it remains in the possession of the original purchaser.
• To the product that has not been subject to accident, misuse or abuse.
• To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
• That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
• That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
• Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
