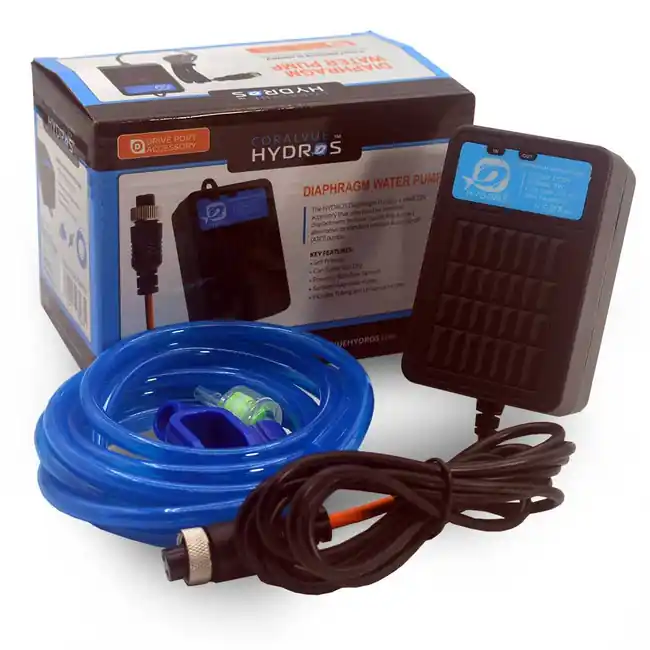

Hydros Diaphragm Water Pump – Coralvue

Diaphragm Water Pump

The HYDROS Diaphragm Pump is a small 12V Drive Port accessory that uses positive external displacement to move liquids. It is a smart alternative to standard internal auto-top-off (ATO) pumps. Fitted with a GX-2 connector to be powered and controlled by an available DRIVE PORT on your HYDROS Device.

Key Features:

• Self Priming
• Can Safely Run Dry
• Prevents Backflow Siphons
• Surface Mountable Pump
• Includes Tubing and Universal Holder

Includes:

HYDROS Diaphragm Pump (plugs into HYDROS Drive Port)

Universal Han-On Tubing Mount

Inline Intake Filter

Tubing 6.5ft (5/32in ID – 1/4in OD)

Pump Specifications:

• Diaphragm Pump Life: 500hrs
• Dimensions: 4 x 2.25 x 1.375 (LxWxH)
• Maximum Head: ~9ft
• Flow Rate: 8gph
• Power: 3w
• Cable Length: 6ft
• Tubing Size: 6.5ft, ID 5/32in, OD 1/4in
